Product information

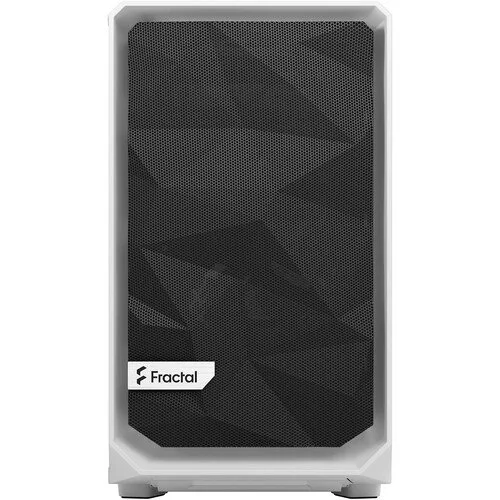

Fractal Design Meshify 2 Nano Mini-Tower Case
Bring plenty of airflow to small builds with the Meshify 2 Nano Mini-Tower Case in white from Fractal Design. Supporting Mini-ITX and Mini-DTX motherboards, this mini-tower case features a 3.5/2.5" drive bay and two 2.5" drive mounting brackets. Plus, two expansion slots provide space for various adapter cards including GPUs up to 12" with the front fan installed; removing the intake fan provides space for GPUs up to 13". Furthermore, the Meshify 2 Nano supports CPU coolers up to 6.6" and ATX PSUs up to 6.37 or 7.87" with the modular heat shroud and drive cage removed.
SPECIFICATIONS
| Motherboard Support |
Mini-DTX, Mini-ITX
|
| Internal Drive Bays |
1x 2.5/3.5"
and 3x 2.5" |
| Expansion Slots |
2x Full Height
|
| Maximum GPU Length |
13.0" / 331 mm
|
| CPU Cooler Height |
6.6" / 167 mm
|
| Fans Included |
Front:
1x 140 mm Non-LED (Unspecified rpm) Rear: 1x 120 mm Non-LED (Unspecified rpm |
| I/O |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
