Product information
🛍️ Product Name

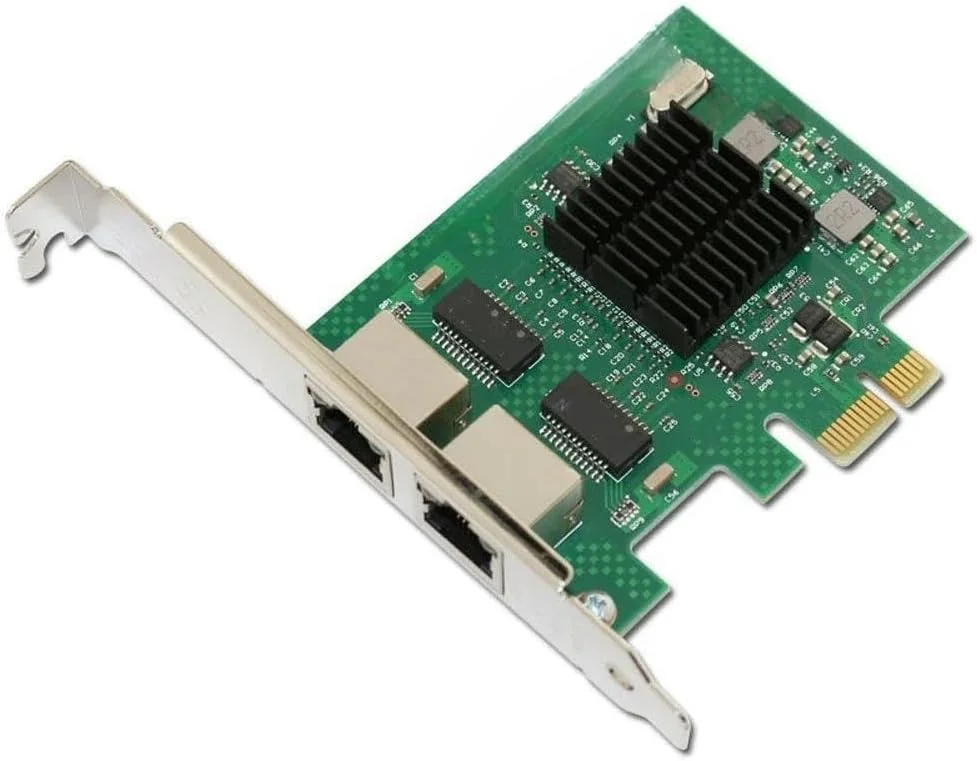

Winyao E575T2 Dual-Port PCI-E X1 Gigabit Ethernet Network Adapter – Based on Intel 82575 Controller, RJ45 Copper Interface
📦 Product Overview
The Winyao E575T2 is a dual-port Gigabit Ethernet adapter designed for servers, workstations, and virtualized environments requiring stable multi-port connectivity. Powered by the Intel 82575 controller, it supports advanced offloading, virtualization queues, and low-latency packet processing. Ideal for enterprise networking, industrial control, and high-throughput applications.
🌟 Top Highlights
🔌 Dual RJ45 Ports – Supports two independent Gigabit Ethernet channels
⚙️ Intel 82575 Chipset – Integrated MAC + PHY + SERDES for high reliability
🚀 Advanced Offloading – TCP/UDP/IP checksum and segmentation offload
🧠 Virtualization Support – VMDq, SR-IOV, and Direct Cache Access (DCA)
🌐 IEEE Compliance – Supports 802.3az, 802.3ad, 802.1Q, and 802.3x standards
📐 Technical Details
| Specification | Details |
|---|---|
| Model Number | E575T2 |
| Chipset | Intel 82575 |
| Interface | PCI Express X1 |
| Ports | 2 x RJ45 (UTP) |
| Speed | 10/100/1000 Mbps (Auto-negotiation) |
| Standards | IEEE 802.3az, 802.3ad, 802.1Q, 802.3x |
| Offload Features | Checksum, TSO, SCTP, MSI/MSI-X |
| Virtualization | VMDq, SR-IOV, DCA |
| Jumbo Frame Support | Up to 9.5KB |
| LED Indicators | Link / Activity / Speed |
| Operating System | Windows, Linux, VMware |
💡 Why You Should Buy It
✅ Dual-port design for link aggregation and multi-network segmentation
✅ Intel 82575 controller ensures enterprise-grade reliability and performance
✅ Advanced virtualization and offloading features reduce CPU load
✅ Fully compliant with major IEEE networking standards
🎯 Recommended Use Cases
➤ Server and workstation multi-port networking
➤ Virtualized environments with VLAN segmentation
➤ Industrial control systems requiring stable Ethernet
➤ High-throughput data transfer and link aggregation
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Deploy dependable dual-port Gigabit networking with Winyao’s virtualization-ready E575T2 adapter.
Thanks for choosing – YOUR TRUSTED IT PARTNER.
