๐๏ธ Product Name

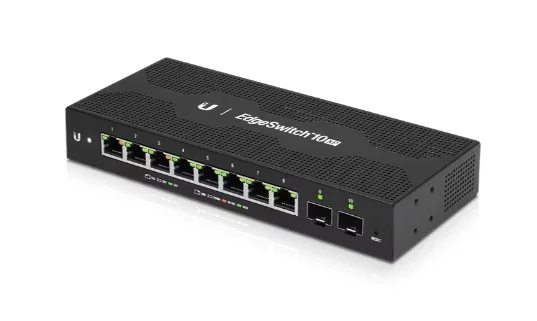

Ubiquiti ES-10XP UISP EdgeSwitch 10XP โ 8x Gigabit RJ45 Ports with 24V Passive PoE, 2x SFP Fiber Ports
๐ฆ Product Overview
The Ubiquiti UISP EdgeSwitch 10XP is a compact, managed Gigabit switch designed for wireless ISP and small business deployments. Featuring eight RJ45 ports with 24V passive PoE output and two SFP fiber ports, it delivers reliable connectivity, flexible uplinks, and intuitive browser-based management for streamlined network expansion.
๐ Top Highlights
๐ 8x Gigabit RJ45 Ports โ High-speed copper connectivity with PoE output
๐ 2x SFP Fiber Ports โ Flexible fiber uplink options
โก 24V Passive PoE โ Powers antennas and network devices directly
๐ 10 Gbps Non-Blocking Throughput โ Ensures smooth traffic flow
๐ฅ๏ธ Intuitive Management โ Browser-based UI for easy configuration
๐ Technical Details
| Specification | Details |
|---|---|
| Dimensions | 207 x 31.1 x 90 mm |
| Weight | 500 g |
| Networking Interfaces | 8x 10/100/1000 Mbps RJ45 ports, 2x 1 Gbps SFP ports |
| Management Interface | Ethernet In-Band |
| PoE Interface | 24V DC passive PoE (Pins 4,5+; 7,8-) |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 24V DC, 2.5A power adapter (included) |
| Supported Voltage Range | 9โ30V DC |
| Max Passive PoE Wattage per Port | 15 W |
| Max Power Consumption | 8 W (excluding PoE output) |
| LED Indicators | System status, RJ45 link/speed/activity, PoE, SFP link/activity |
| ESD/EMP Protection | Air/contact ยฑ24 kV |
| Shock & Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -10 to 50 ยฐC |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, NDAA Compliant |
๐ก Why You Should Buy It
โ
Ideal for WISP and small business deployments
โ
Provides both copper and fiber connectivity
โ
Passive PoE support for powering devices
โ
Compact design with robust performance
๐ฏ Recommended Use Cases
โค Wireless ISP network expansion
โค Powering outdoor antennas or CPE devices
โค Small office LAN switching
โค Fiber uplink integration for hybrid networks
๐ค Customer Assurance
๐ก๏ธ Warranty / Guarantee: Coverage available through manufacturer support
๐ Returns Policy: Returns accepted as per standard reseller terms and conditions
๐ Shipping Info: Delivery handled by reliable logistics partners with tracking support
๐ Customer Support: Assistance available via authorized resellers and support partners
๐ Call to Action
Deploy the Ubiquiti EdgeSwitch 10XP for reliable PoE switching and fiber-ready connectivity
