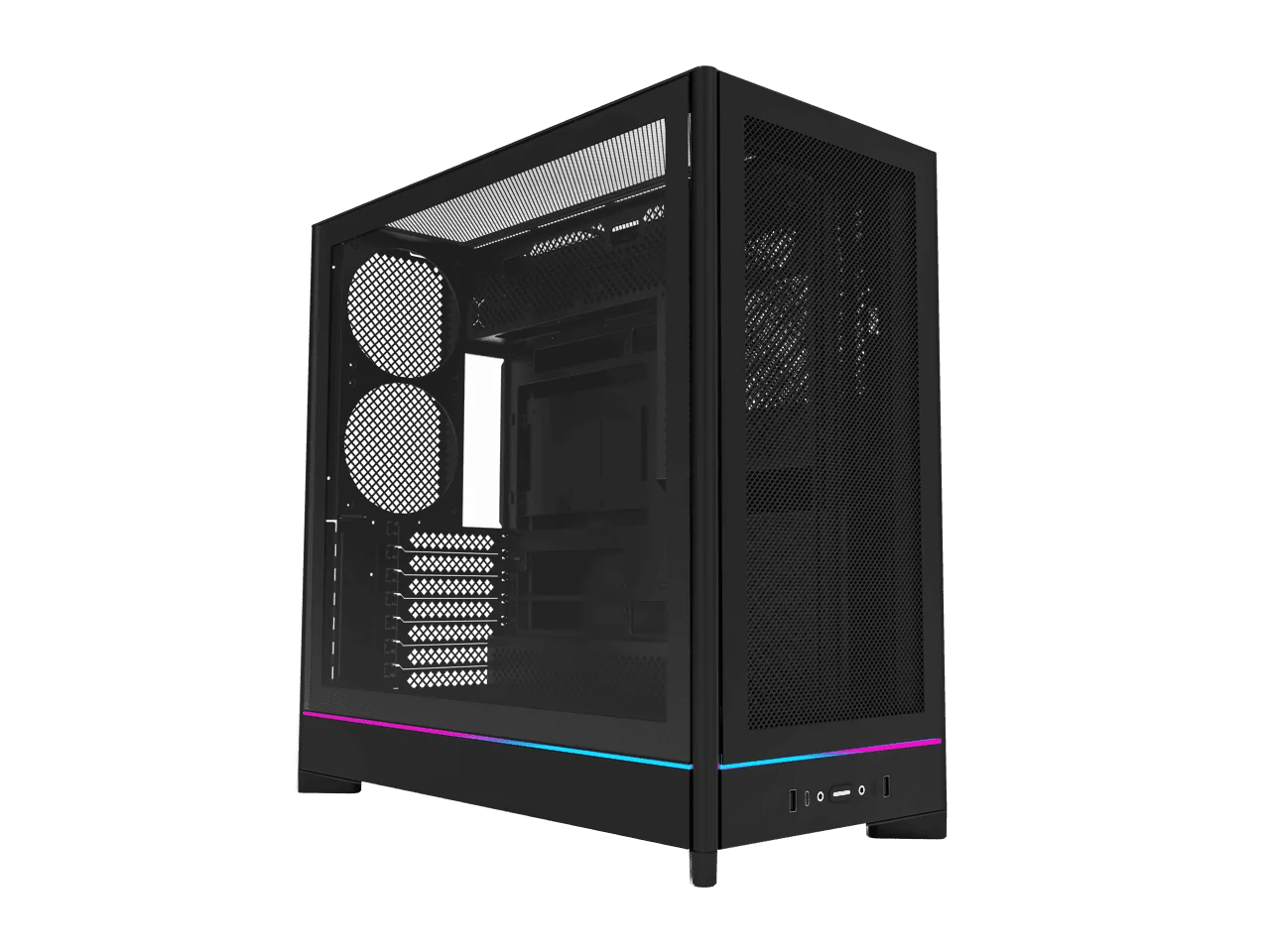

MONTECH HS01 Black (Mesh Front)

The MONTECH HS01 Black is a high-airflow mid-tower chassis engineered for efficient cooling and sleek aesthetics. Featuring a mesh front panel, reversible orientation, and a sink‑in layout, it offers strong thermal performance while maintaining a clean, modern internal presentation. Compatible with standard and back‑connect motherboards, this case is ideal for showcasing high-performance components with minimalist design.

SPECIFICATIONS

Storage Support

• 2 × 3.5″ HDD

• 4 × 2.5″ SSD

Expansion Slots

• 7 standard PCIe slots

• Rotatable for vertical GPU installation

Cooling & Fan Layout

• Fan support: Front → 3×120 mm or 2×140 mm, Top → 3×120 mm, Bottom → 3×120 mm, Rear → 2×120 mm

• Pre-installed fans (HS01 PRO variant only)

• Chimney-style airflow: bottom intake → top/rear exhaust

Radiator Support

• Front or top: up to 360 mm

• Bottom: up to 240 mm

• Rear: 120 mm

Component Clearance

• CPU Cooler height: up to 175 mm

• GPU length: up to 420 mm

• PSU depth: up to 200 mm (supports ATX or SFX units)

Front I/O Ports

• 2 × USB 3.0 Type-A

• 1 × USB Type-C

• Audio-out and Mic-in

• Power and Reset buttons

• LED lighting control button
