| Model |
MASTER X |
| Supported CPU |
| CPU Socket Type |
LGA1700 |
| CPU Type |
Support for the 13th and 12th Generation Intel? Core?, Pentium? Gold and Celeron? Processors* |
| Chipsets |
| Chipset |
Intel Z790 Express Chipset |
| Memory |
| Number of Memory Slots |
4 x DDR5 DIMM sockets |
| Memory Standard |
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O. |
| Maximum Memory Supported |
up to 192 GB |
| Channel Supported |
Dual channel memory architecture |
| Expansion Slots |
| PCI Express x16 |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, su |
| Storage Devices |
| SATA 3Gb/s |
4 x SATA 6Gb/s connectors |
| SATA RAID |
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| Onboard Video |
| Onboard Video Chipset |
Integrated Graphics Processor-Intel HD Graphics |
| Onboard Audio |
| Audio Channels |
2/4/5.1-channel |
| Audio Chipset |
Realtek ALC1220-VB codec |
| Onboard LAN |
| LAN Chipset |
Marvell? AQtion AQC113C 10GbE LAN chip |
| Max LAN Speed |
10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |

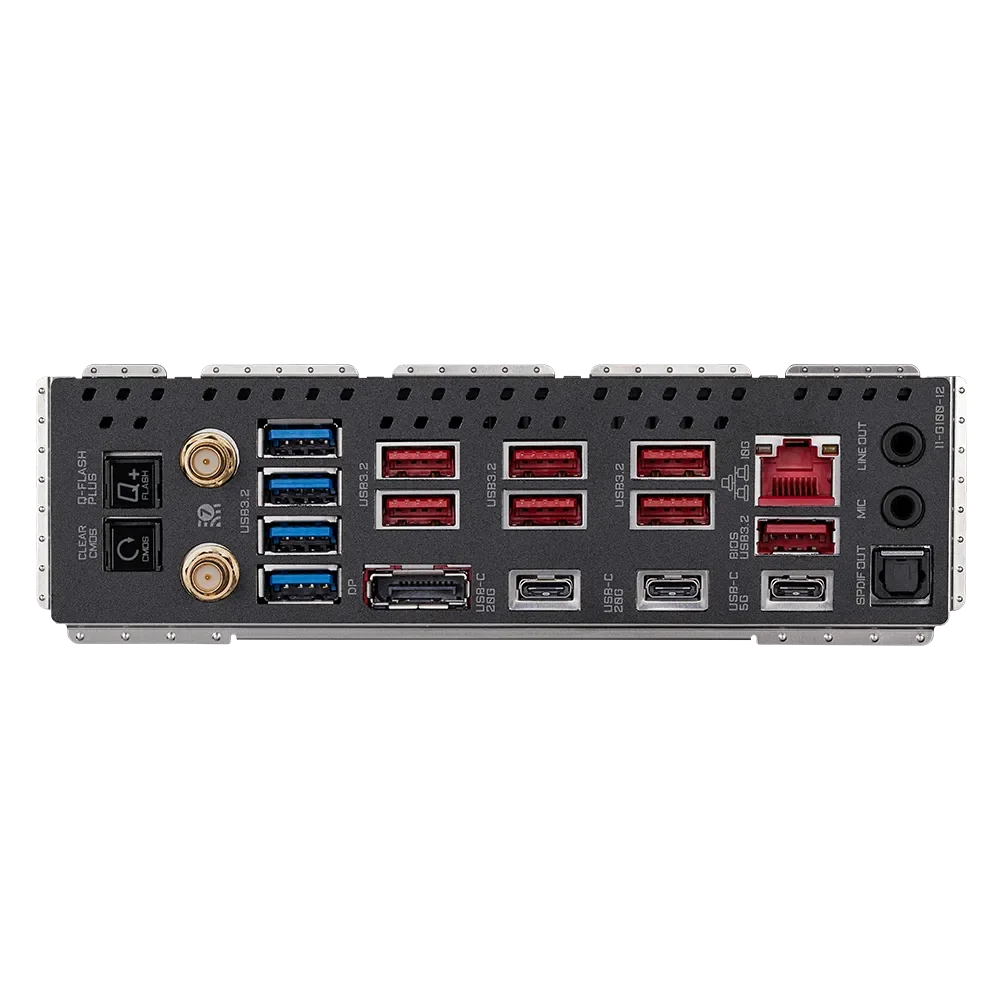

| Rear Panel Ports |
| USB |
3 x USB Type-C? ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel),1 x USB Type-C? port on the back panel, with USB 3.2 Gen 1 support - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back |
| S/PDIF Out |
1 x optical S/PDIF Out connector |
| Audio Ports |
2 x audio jacks |
