Product information

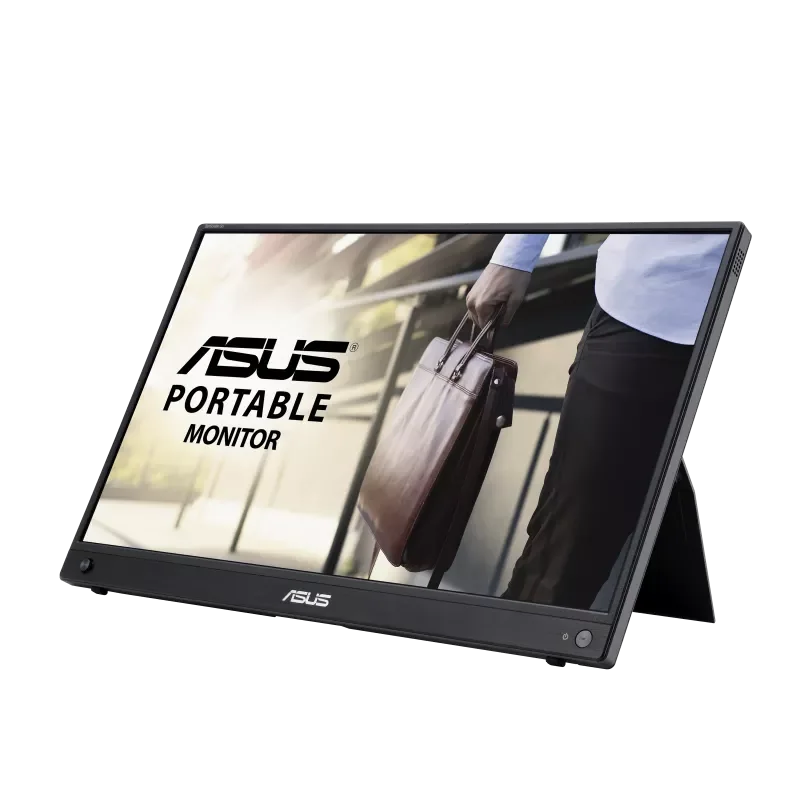

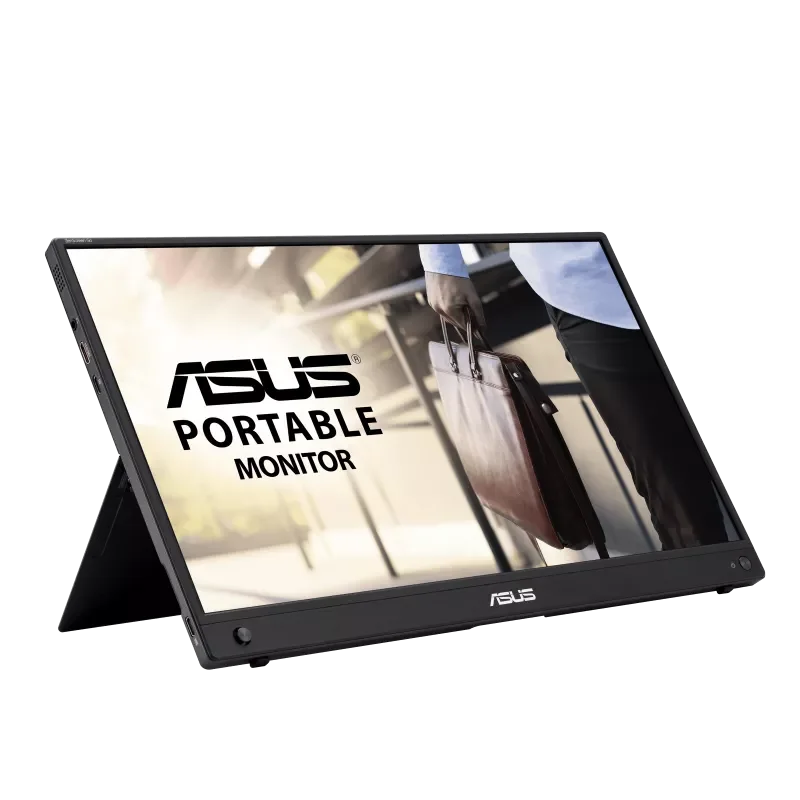

ASUS ZenScreen GO MB16AWP
- 15.6-inch FHD display with super-narrow bezels and anti-glare coating
- Effortless wireless mirroring support for iOS, Android, plus Windows 10 and above devices (including Win 11)
- Rich connectivity with USB Type-C® and mini HDMI® ports, plus an earphone jack
- Two embedded 1-watt speakers with smart amplifier
- Built-in G-sensor enables an Auto Rotation feature that automatically senses display orientation and switches between landscape and portrait modes
- Rear tripod socket is compatible with any standard camera tripod
- Built-in 7800 mAh battery
SPECIFICATIONS
Model
ASUS ZenScreen GO MB16AWP
Display
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16(H) x 193.59(V) mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (sRGB) : 100%
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16(H) x 193.59(V) mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (sRGB) : 100%
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes
Features
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes
Wireless Function
Wireless Projection : Yes
WiFi : Yes(Embedded)
WiFi : Yes(Embedded)
Audio
Speaker : Yes(1Wx2)
I/O Ports
USB-C x 1 (DP Alt Mode)
Mini HDMI x 1
Earphone Jack : Yes
Mini HDMI x 1
Earphone Jack : Yes
Signal Frequency
Digital Signal Frequency : 53~77KHz(H) / 48~61Hz(V)
Battery
Battery : 7800mah
Power Consumption
Power Consumption : 7.6W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : DC: 5V, 3A
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : DC: 5V, 3A
Mechanical Design
Tilt : Yes (+15° ~ +35°)
Height Adjustment : No
1/4" Tripod Socket : Yes
Height Adjustment : No
1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 35.79 x 22.48 x 1.15 cm (14.09" x 8.85" x 0.45")
Box Dimension (W x H x D) : 44.60 x 29.10 x 13.90 cm (17.56" x 11.46" x 5.47")
Box Dimension (W x H x D) : 45.60 x 30.00 x 13.80 cm (17.95" x 11.81" x 5.43")
Box Dimension (W x H x D) : 44.60 x 29.10 x 13.90 cm (17.56" x 11.46" x 5.47")
Box Dimension (W x H x D) : 45.60 x 30.00 x 13.80 cm (17.95" x 11.81" x 5.43")
Weight (Esti.)
Net Weight : 1.09 kg (2.40 lbs)
Gross Weight : 2.3 kg (5.07 lbs)
Gross Weight : 2.3 kg (5.07 lbs)
